Overview：

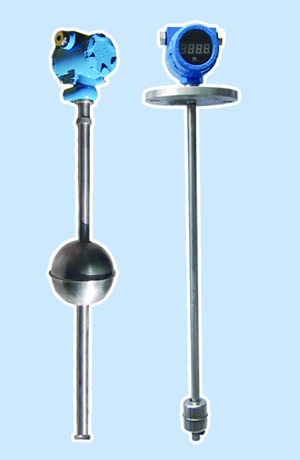

  LHFQ861 type floating ball level gauge can continuously measure the liquid level, and can reliably and stably obtain the liquid level signal without being affected by the physical and chemical state changes of the measured medium, such as foam, electrical conductivity, dielectric constant, pressure, vacuum, temperature, evaporation, bubble formation, boiling, density change, etc. It is easy to install. No maintenance work is required in the future after one-time adjustment before use. The level signal of the liquid level in the container and the interface can be displayed in proportion. The starting amount can be set arbitrarily throughout the measurement range. Repeated actions are consistent. It has strong corrosion resistance and wide application range.

  The LHFQ861 type floating ball level gauge can be widely used in the measurement of liquid level and limits in chemical, petrochemical, natural gas, pharmaceutical, marine exploration, shipbuilding, power plants, power plants, machine manufacturing, pure water and drinking water purification equipment, beverages and food industry.

Features：

  Local button can be adjusted to adjust the maximum range and zero point.

  In line with the HART protocol, the HART communication hand-held device or microcomputer can be used for double-sided communication with the smart meter without interrupting the output signal. It is suitable for the measurement of the instrument, and the access or modification of process parameters, equipment configuration, approval, and diagnostic information of the instrument through the HART protocol in explosion-proof site or under inconvenient disassembly and assembly circumstances.

  Two-way communication with the host in a distributed control system using the HART protocol.

  With EEPROM, no data is lost due to power failure.
