Overview：

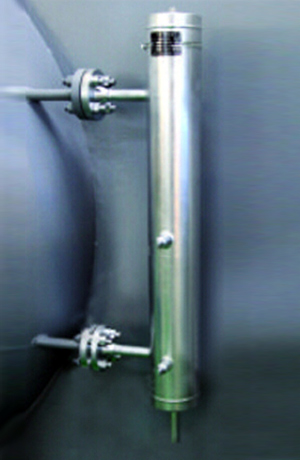

  Balance container is equipped to measure drum level, which with difference pressure transmitter, pressure transmitter, temperature transmitter, indication control unit to measure water level and feedwater of boiler drum. It can control, alarm and reflect drum level. The balance container can be considered as double-room balance container and single-room balance container,  Pressure ranks middle, high, super-high, sub-critical and supercritical. It forms a series of the product in our company now. Select balance container according to medium pressure, temperature, level and the center distance.

Features：

  The double-single balance container is composed of a measuring cylinder, a positive pressure compensating tube, a water cup and a funnel, etc. Since the saturated steam is simultaneously heating the measuring cylinder and the positive pressure compensating tube, the gravity in the positive pressure compensating tube is approximately equal to the severity of the drum water under the corresponding drum pressure under any circumstances. At the same time, due to the correct selection of the height of the positive pressure compensating tube, at the normal water level, the pressure difference of the output of the balancing container does not change regardless of the pressure in the steam drum. Therefore, the indication of the normal water level is not affected by the working conditions.
